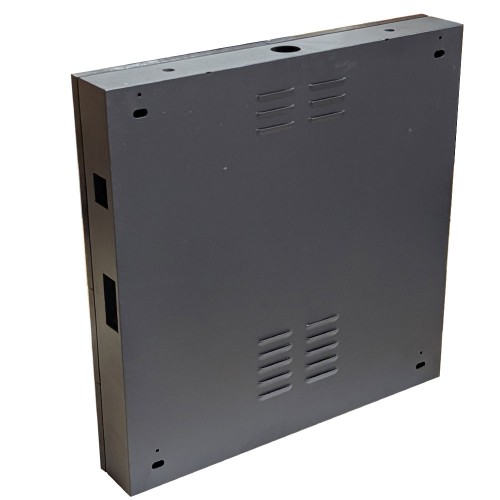

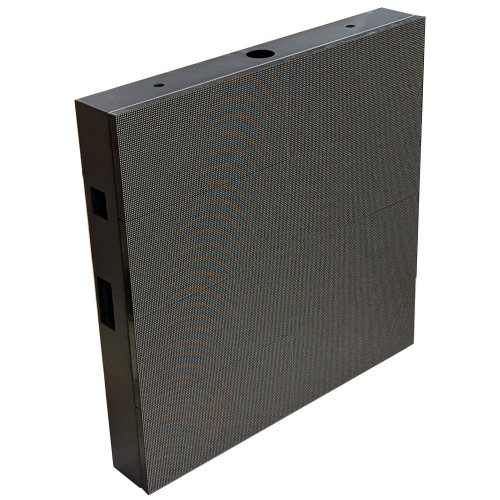

P3 Fix Out Front Service 64*64cm

שימו לב!

המחירים יינתנו בהתאם לפרויקט.

 Fixed Outdoor LED Screen, Front Service  3 PITCH

יחידות של 64*64 ס"מ

עובי 88 מ"מ

Refresh 7680Hz

משקל: 11 ק"ג

ברזולוציה של 3 PITCH

KingLight LED

TECHNICAL PARAMETERS FOR FRONT SERVICE

OUTDOOR LED DISPLAY P3

• Pixel pitch: 3mm

• Panel size: L320*H160*T14mm

• Pixel configuration: 1,1,1R/G/B

• Driving method: 1/10 Constant current 1/8 scan

• LED Encapsulation: 1921 SMD

• Display resolution: 64*32=2048

• Module weight: 0.25KG

• Module port: HUB-HD75 (2)

• Module working voltage: 5VDC

• Module consumption: 25W

• Viewing angle: 140 Deg.

• Option distance: 3-40M

• Driving device: IC:2037S/2153

• Maximum power: 490W/ M2

• Frame Frequency: ≥60hz

• Refresh frequency: ≥7680Hz

• Equilibrium Brightness: ≥5500 cd/nit

• Working environment temperature: -100 ~ +600

• Working environment humidity: 10%～70%

•  Display working voltage: AC47~63HZ，220V±15%/110V±15%

• Colour temperature: 7000K-10000K

• Grayscale/color: ≥16.7M color

• Input signal: RF\ S-Video\ RGB etc

• Control system: NovaStar(MRV208-1)  Linsn  Coloright

• Mean free error time: ＞5000 HOURS

• Life: 100000 HOURS

• Lamp failure frequency: ＜0.0001

• Anti Jam: IEC801

• Safety: GB4793

• Resist the electricity: 1500V last 1 min No breakdown

• IP rating: The back IP40，The front IP65

• Steel box size: L640*h640/960x960MM(FIXED)

• Cabinet Net Weight: (fixed) 11KG

• Cabinet Resolution: 192*192 DOTS

SMD2121; ICN2037; KingLight LED; MRV208-1 receiving card;
