- דגם: SK P118

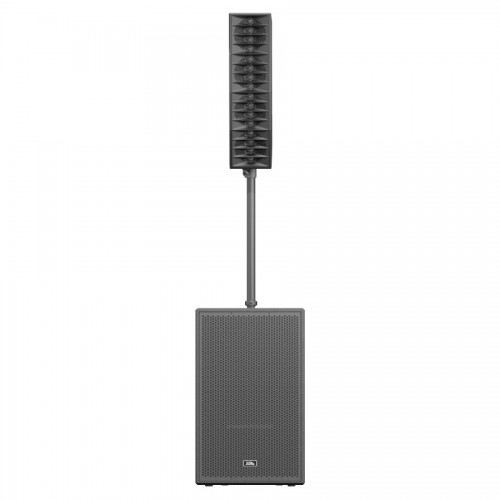

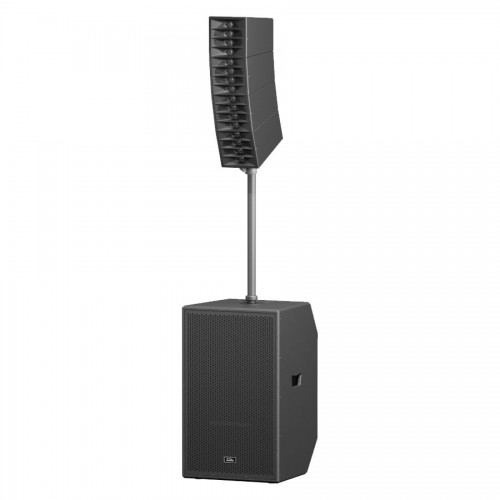

P118 Active Mobile Array Sound System, 2*800 Watt
The P118 active mobile array sound system is composed of one
4 x 5" neodymium magnetic passive line array full-range loudspeaker + one 18" active subwoofer with built-in 4-way input box mixer with dual channel power amplifier + 1 x 6.35 2-core plug special adapter bracket. Phase-inverted design,
built-in 2-way 800W + 800W dual channel power amplifier,
4-way input channel box mixer, including 2-way Mic/Line input, 1-way RCA stereo hybrid line input, 1-way HI-Z line input, 2-way XLR line output, 1-way hybrid line output, ultra-low frequency volume can be independently communication and intelligence system;
The overall timbre is clear and exquisite,
the LF effect is surging, with strong penetration and shock, and the sound field has a wide coverage distance.
18" Active Subwoofer
4 x 5" MLF Speaker
16 x 1" Dome Horn HF

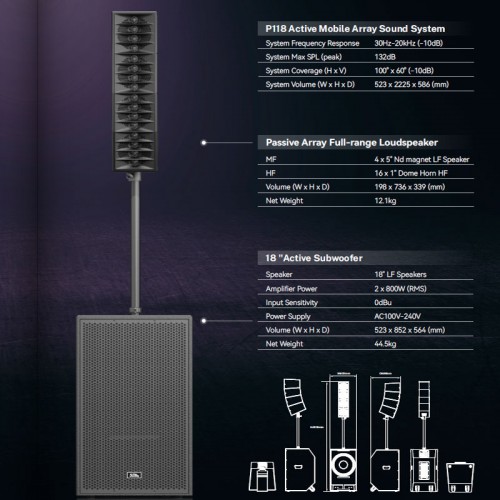

System Frequency Response 30Hz-20kHz (-10dB)
System Max SPL (peak) 132dB
System Coverage (H x V) 100° x 60° (-10dB)
Sizes (W x H x D) 523 x 2225 x 586 (mm)

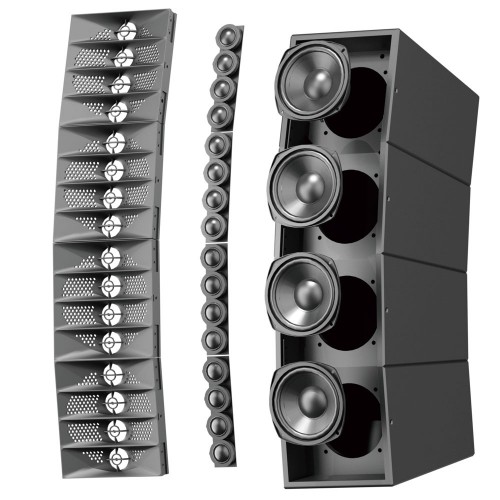

Passive Array Full-range Loudspeaker
MF 4 x 5" Nd magnet LF Speaker
HF 16 x 1" Dome Horn HF
Size (W x H x D) 198 x 736 x 339 (mm)
Net Weight 12.1kg
18 "Active Subwoofer
Speaker 18" LF
Amplifier Power 2 x 800W (RMS)
Input Sensitivity 0dBu
Power Supply AC100V-240V
Size (W x H x D) 523 x 852 x 564 (mm)
Net Weight 44.5kg

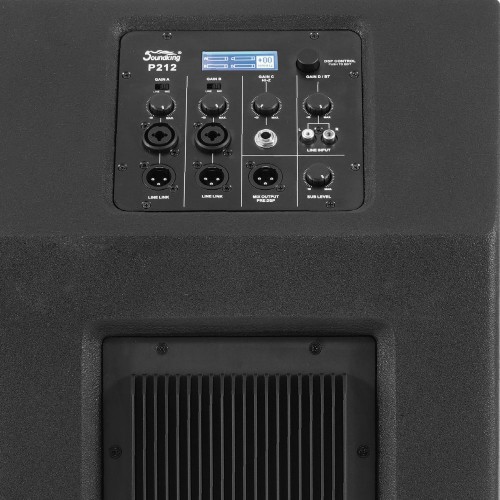

Built In 4-Channels Mixer
Two Combo Inputs (XLR / 6.35mm) with two XLR Line Link
One 6.35 Input
RCA input
Connection of TWS Bluetooth Signal
When using a pair of P118 Bluetooth speakers, they can be set to TWS
mode to create a stereo effect.
Built in Powerful 24bit DSP Loudspeaker Processing Module
It has the functions of gain, crossover, equalization, delay, threshold, program
memory, etc. You can directly select the default program design of the
manufacturer, or you can optimize the settings yourself.
2-way 800W+800W "CLASS-D" Amplifier
High efficiency, high power, low distortion, excellent sound quality, and stable
performance.
Ultra Long Delay Time DSP Setting Adjustment range 0-100 meters, Step by 0.25 meters.
Horn HF Design Ultra Wide Angle Coverage
Wide coverage angle, H x V: 100° x 60°, farther sound reinforcement, strong
penetration and analytical power, can effectively avoid the defect of too small
vertical coverage plane angle of vertical linear sound source.
The Design of Adding Casters to the Subwoofer Cabinet
Time saving, labor-saving, and more convenient and efficient for mobile use.
Pneumatic Lifting Bracket
The height of the array full-range loudspeaker can be adjusted according
to the use requirements to obtain excellent sound field coverage.
The array full-range loudspeaker does not need an external loudspeaker cable
connection. The internal socket of the loudspeaker has been wired, and the
cabinet can be plugged in for normal use. The contact is reliable and easy to operate.
