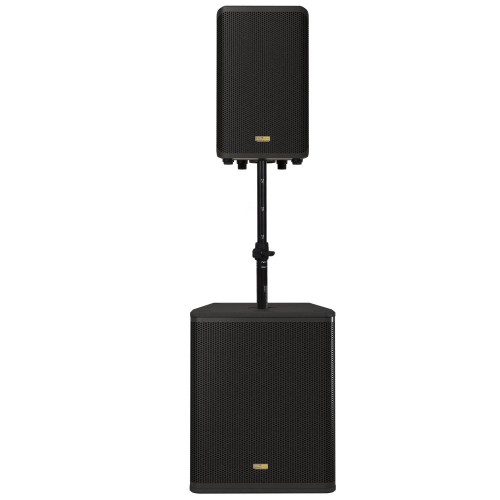

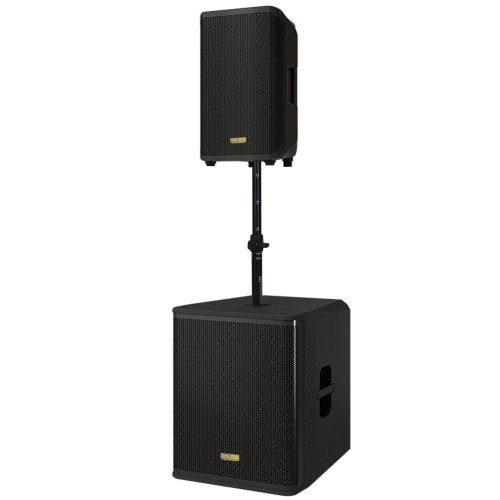

מערכת הגברה 1200 וואט

המערכת כוללת סאב וופר מוגבר 15" + רמקול מוגבר 10"

• APP CONTROL FUNCTION !

Soundking Y1015 Active Loudspeakers System

Including Y10P Active Coaxial Top Speaker

This speaker cabinet features a coaxial point-source horn design, enhancing sound image localization accuracy and delivering clear vocal reproduction. The bass section utilizes a ferrite magnetic circuit design, while the voice coil is made from a new high-temperature-resistant material, ensuring efficient heat dissipation during high-power operation. The high-frequency driver is equipped with a compression driver and an aluminum diaphragm, producing a bright and penetrating sound.

High-Efficiency Dual Power Amplifier

The built-in dual amplifier system combines a Class-D amplifier for bass and a Class-AB amplifier for treble, offering high efficiency, powerful output, and stable performance with smooth and dynamic sound reproduction. Its wide power supply design supports global voltages, ensuring versatile compatibility.

Intelligent DSP Processing

The preamplifier input features a 24-bit 48kHz DSP processor, providing five sound modes, a 3-band equalizer, low-cut filter, limiter, delay, and volume control. A color LCD display allows for easy adjustment of various settings.

Convenient Wireless Connectivity

Supports Bluetooth connection with a TWS (True Wireless Stereo) function for seamless speaker interconnection. The built-in microphone automatically reduces interference, ensuring clear voice transmission. Additionally, an app-based remote control allows for easy operation, including standby mode activation.

Durable Construction:

Injection-molded high-strength polypropylene cabinet for durability and lightweight portability. 30° angled design for use as a floor monitor.

Mounting Options:

35mm pole socket with dual-angle options (0°/7.5°).

Five M10 rigging points for versatile hanging configurations.

Applications:

Suitable for conference rooms, classrooms, transportation hubs, retail spaces, bars, KTVs, and parties. Ideal for mobile sound reinforcement.

Acoustic & Component Specifications

• Configuration: 2-way coaxial design (high and low-frequency drivers share the same axis).
• LF Driver (Woofer): 10-inch woofer with a high-temperature voice coil.
• HF Driver (Tweeter): 1.35" compression driver with an aluminum diaphragm.
• Amplifier Power: 1400 Watt
• Rated Power: 300W LF + 50W HF
• Frequency Response: 50 Hz – 20 kHz.
• Maximum SPL (Peak): 126.5 dB.
• Coverage Angle (Dispersion): 80° × 80° (conical).
• Crossover Frequency: 2.2 kHz.
• Size: 305*519*310mm
• Net Weight: 13.5kg

Amplifier & Power

• Peak Output Power: 1400 Watts.
• Amplifier Type: Bi-Amp system (Class D for low frequencies + Class AB for high frequencies).
• Power Supply: Wide-voltage switching power supply (compatible up to 240V).

DSP & Control Features

• DSP Processor: 24-bit / 48 kHz digital engine.
• User Interface: Color LCD screen with a single push-encoder knob.
• DSP Functions: 5 application presets, 3-band EQ, low-cut filter, compression, delay, and master volume.
• Connectivity: Built-in Bluetooth with True Wireless Stereo (TWS) pairing support.
• Remote Control: Wireless parameter adjustment available via a dedicated mobile app.
• Special Features: Microphone priority/ducking function.

Inputs & Outputs

• Inputs: 3 × Combo jacks (XLR / 6.3mm Jack) supporting mic and line-level inputs.
• Aux Input: 1 × Dedicated AUX IN jack.
• Outputs: 1 × Balanced XLR Mix Output for linking external speakers.

15" Active Subwoofer Y15SP

* Frequency response: 43Hz-150Hz

* Max SPL dB: 131 dB

* rated Power: 800 Watt RMS

* Amplifier Power: 3200 Watt

* Support Mount 35mm

* Size: 490*590*565mm

* Weight: 33kg
