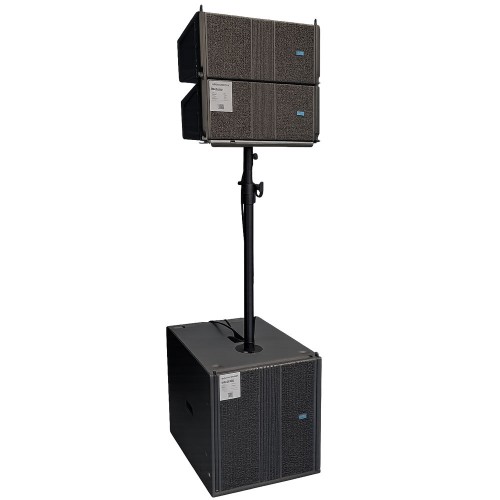

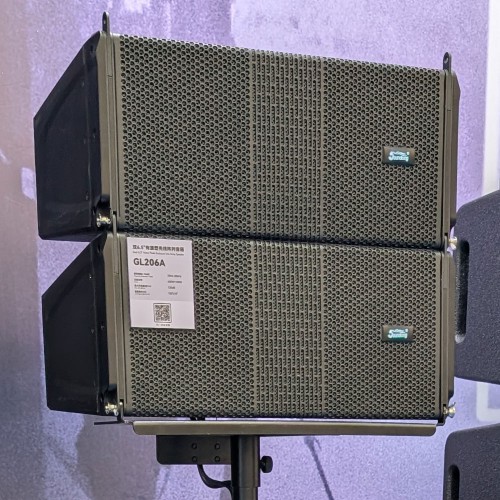

The Soundking GL206A / GL206SA are a multi-purpose, self-powered line array speakers built for demanding live sound applications. Its high-strength PP composite trapezoidal cabinet is lightweight and rugged, designed to minimize the gap between adjacent modules — reducing unwanted sound areas and vertical side lobes for tighter, more controlled dispersion.

Each GL206A module houses its own independent high-power amplifier and DSP processor, eliminating the need for external amplification. The factory DSP comes with preset programs for immediate plug-and-play operation, while also offering full manual control over every parameter via the front-panel encoder and LCD display.

Two 6.5" mid-bass drivers deliver extended low-frequency headroom, while the 3" compression driver converts the HF dome wave into a consistent equiphase plane wave through a 120° constant-directivity horn — improving clarity and projection at long distances.

The precision aluminium suspension system allows the inter-cabinet angle to be adjusted from 0° to 10° per element, enabling flexible array shaping to suit any venue geometry. An RS-485 network connector allows centralized DSP control of the entire array from a single interface, and AC Link power chaining simplifies cabling between cabinets.

Technical Specifications

Type: 2-way active line array, full-range
LF/MF unit: 2 × 6.5" ferrite mid-bass driver
HF unit: 1 × 3" compression driver
Amplifier power: 400 W (LF/MF) + 150 W (HF) = 550 W total
Frequency response: 70 Hz – 20,000 Hz
Horizontal coverage (−6 dB): 100°
Vertical coverage (−6 dB): 10° per element
Element angle: 0°–10° adjustable
Max SPL (1 m, free field): 130 dB
Input sensitivity: 0 dB
Voltage: 230 V / 115 V
Cabinet material: PP composite
Dimensions (W × H × D): 470 × 207 × 341 mm
Weight: 15 kg
Suspension points: 3

Built-in DSP Functions

Gain, crossover, 3-band EQ, low cut filter, delay, limiter, preset memory, RS-485 network control.

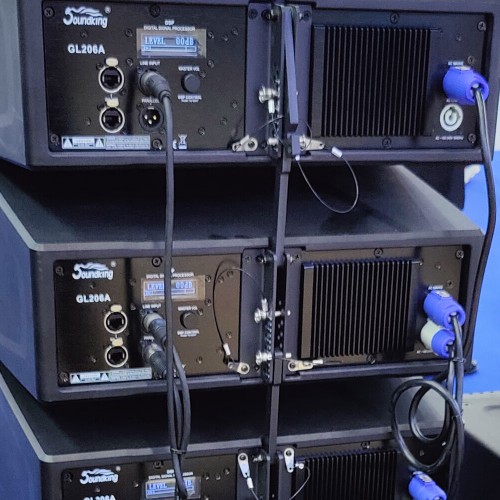

Connectivity

LINE INPUT — Balanced XLR input from mixer or source device.
PARALLEL OUTPUT — Balanced XLR throughput to chain signal to additional cabinets.
NETWORK CONNECTOR — RS-485 for centralized array control.
AC MAIN — IEC power inlet.
AC LINK — IEC power output to daisy-chain mains to the next cabinet.

Applications

Touring shows, large and medium stadiums, small venues, theatres and auditoriums, houses of worship, multifunction halls, corporate events, outdoor concerts.

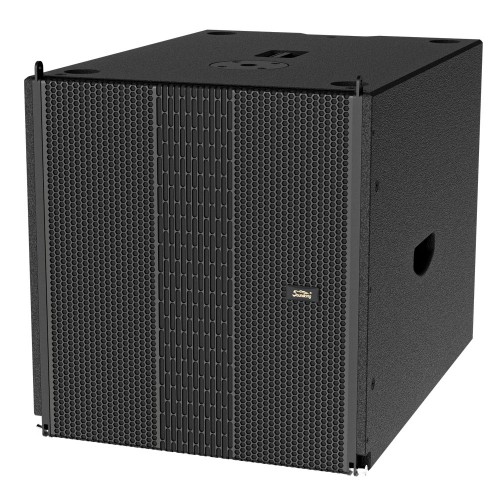

Soundking GL206SA — Technical Specifications

Model: GL206SA
Type: Active single 15" subwoofer (ultralow frequency)
LF unit: 1 × 15" ferrite bass driver
Amplifier power: 1200 W
Frequency response: 40 Hz – 150 Hz
Max SPL (1 m, free field): 130 dB
Input sensitivity: 0 dB
Voltage: 230 V
Cabinet material: Birch plywood
Dimensions (W × H × D): 474 × 506 × 673 mm
Weight: 41 kg

Built-in DSP Functions

Gain, crossover, EQ, delay, limiter, preset memory, RS-485 network control.

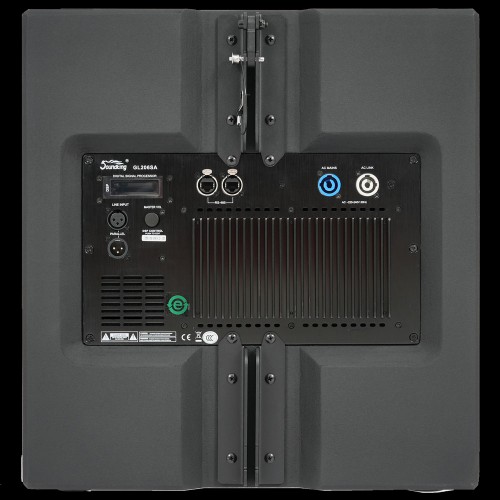

Connectivity

LINE INPUT — Balanced XLR input from mixer or source.
PARALLEL OUTPUT — Balanced XLR throughput to chain signal to additional cabinets.
NETWORK CONNECTOR — RS-485 for centralized array control.
AC MAIN — IEC power inlet.
AC LINK — IEC power outlet to daisy-chain mains to the next cabinet.
